Avionics displays and processing solutions from Intellisense Systems can fulfill new-start, modernization, and form-fit-function replacements for any program. They are designed to be both compatible with legacy technology and open source to work with future software upgrades. These features help to stave off obsolescence and reduce lifecycle costs, saving millions of dollars in development costs and thousands of hours in development time.

All of our avionics displays and processing solutions are certified up to Design Assurance Level A (DAL A). We offer long-term support, proven reliability, open architecture systems for future upgrades, and lower lifecycle costs. Intellisense can also provide a fully customized solution for any operational flight program.



More Info

Avionics Display Solutions

Key Features

High Resolution Screens

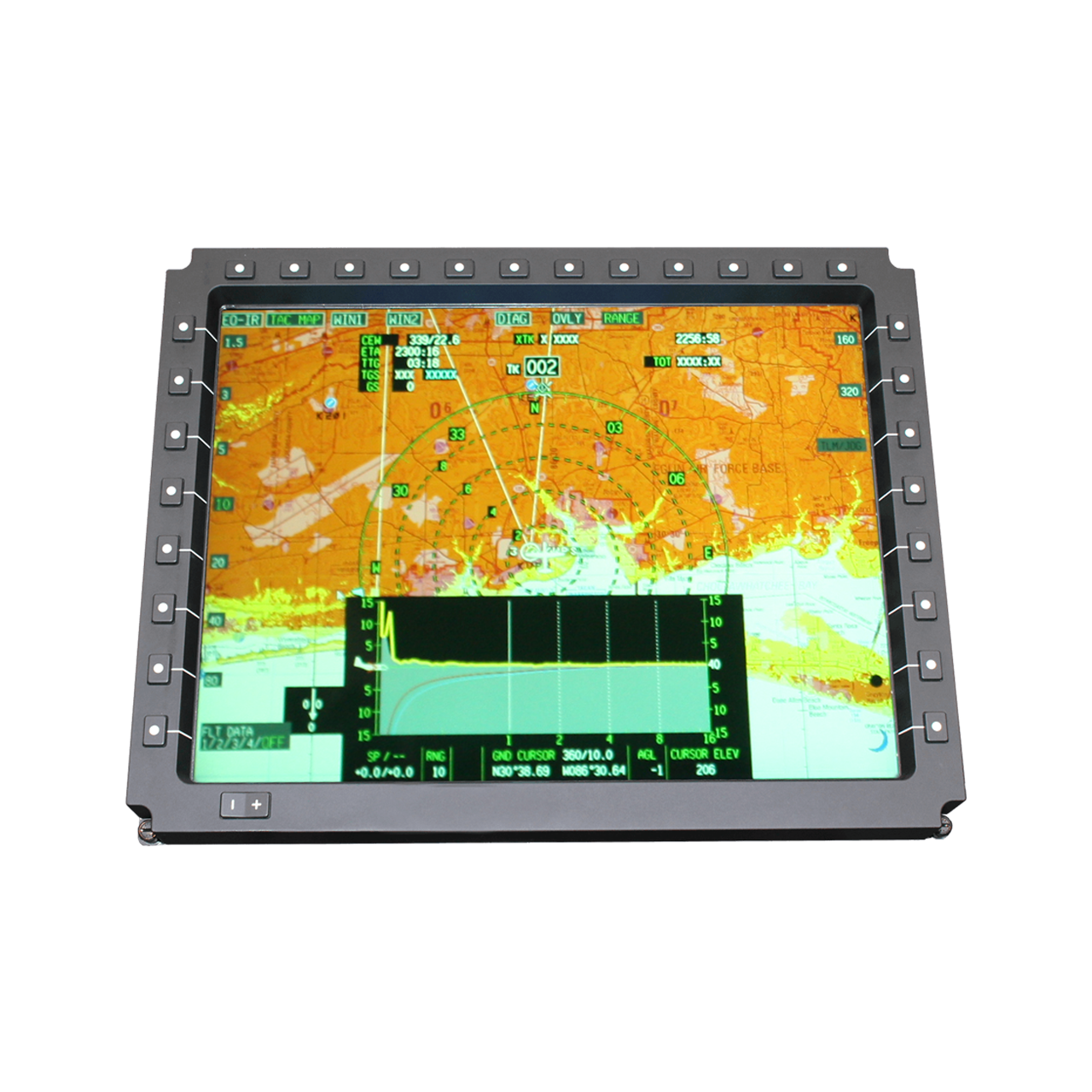

Avionics displays from Intellisense support a wide range of industry standard resolutions up to 4K. They utilize modern, high-resolution active-matrix liquid-crystal displays with wide color gamut and high contrast to ensure the clarity of information to operators.

Ruggedized to MIL-STD and DO-160

All avionics displays from Intellisense are ruggedized and hardened for the most demanding rotorcraft and fixed-wing applications including MIL-STD-810, -461, -704, and DO-160 qualification testing. They are suitable for both rotary and fixed wing platforms and are designed to work in every condition for military and commercial customers.

Industry Standard Interfaces

Our avionics displays support compatibility with numerous industry standard interfaces that may include SMPTE-424M, DVI-D, ARINC-818, RS-170, NTSC for video. Signal and networking interfaces may include MIL-STD-1553B, ARINC-429, ARINC-825 CAN bus, RS-232 JTAG, RS-422, Ethernet, and USB.

Customizable Bezel

Displays from Intellisense can be configured with a customizable bezel tailored to meet customer needs. This includes multifunction buttons, rocker switches, rotary knobs, ambient light sensors, and inclinometers

Safety Certified up to DAL A

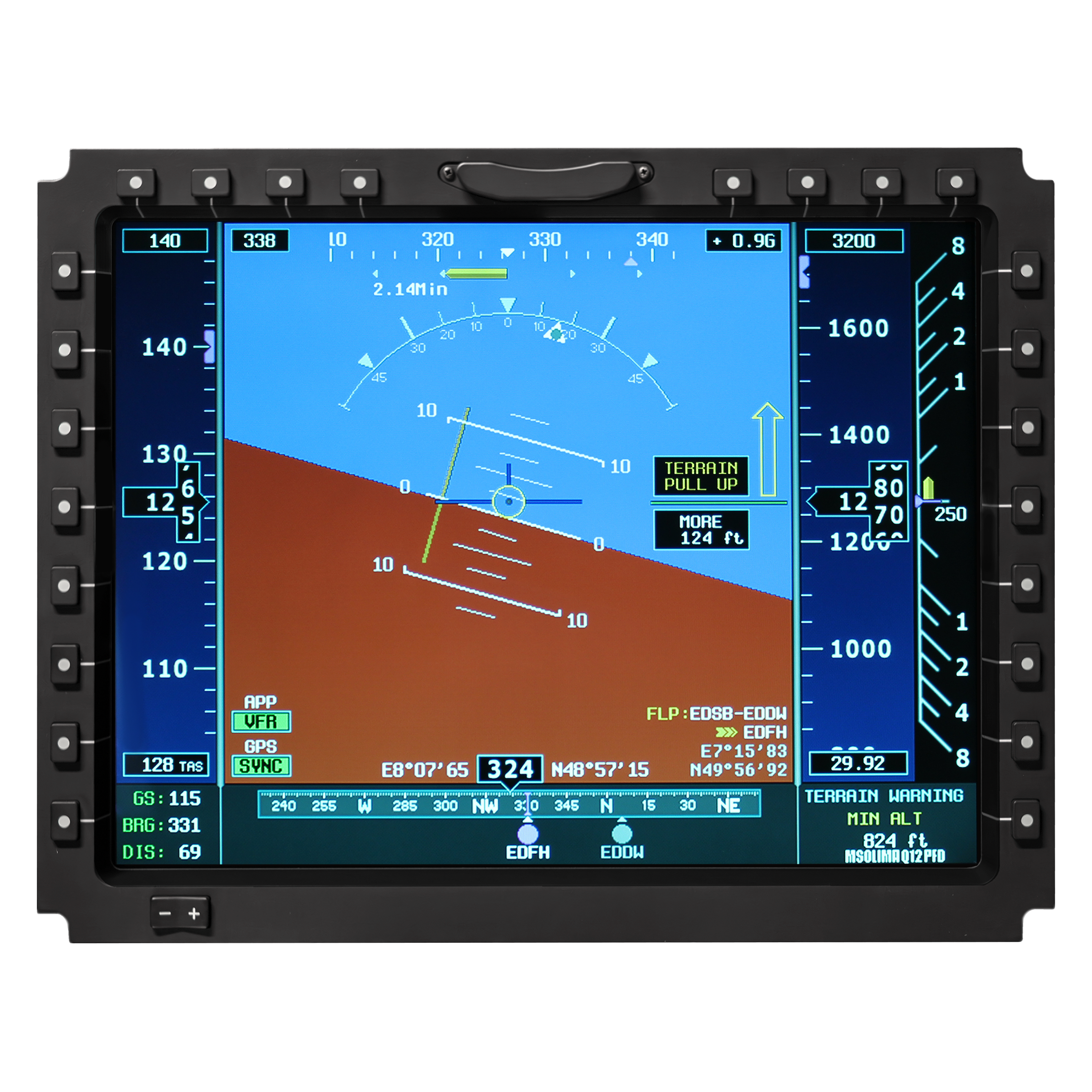

Design Assurance Level A (DAL A) is the highest level of design assurance that can be applied to airborne electronic hardware (AEH) and software. Intellisense avionics displays are certified up to DAL A to meet customer needs.

Sunlight Readable

Intellisense avionics displays are sunlight readable with a backlight luminance rated at greater than 300 feet-lamberts. They also feature a wide color gamut up to 8-bit, ensuring no color pixel information from sensors is lost.

NVIS-Compatible

The screens and bezels on Intellisense’s avionics displays include selectable day/night backlights with MIL-STD-3009 and MIL-L-85762A compliance for NVG compatibility during nighttime operations.

Multitouch Screen Technology

Avionics displays from Intellisense can incorporate resistive multitouch screen (RMTS) and projected capacitive (PCAP) touch screen technologies and gesture recognition to improve the ease-of-use for pilots and operators.

vFusion

The next great innovation in advanced graphical processing platforms, vFusion enables operators to combine 2-4 video inputs onto one screen. Users can combine indicators, radar, and live video onto one display, saving space, weight, and processing power.

Graphics Processing

Avionics displays from Intellisense are equipped with multi-core processing capabilities with a vast array of graphics performance options. These include quad head graphics processing units and software based rendering engines. They are available for both new-build and retrofit programs.

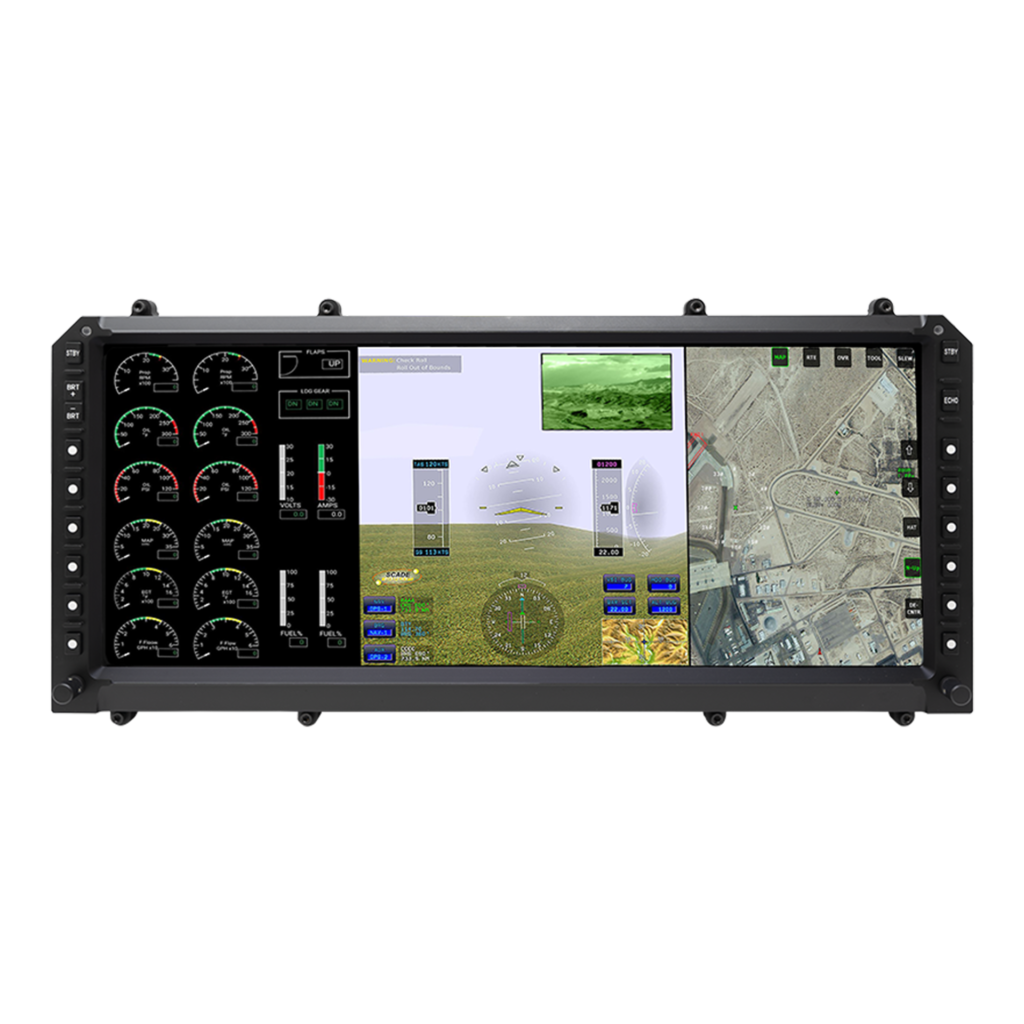

vFusion™ technology empowers pilots to combine 2-4 screens onto a single avionics display

Available on all rugged displays from Intellisense Systems, this digital video processing card can ingest up to 4 ARINC-818 inputs (SXGA format) or 1 DVI input so that indicators, radar, and live video can all be shown on one screen.



Combine, tile, and overlay inputs with alpha blending. You can also set picture-in-picture with zoom capabilities.



This technology works with legacy XGA resolution displays while also being open source to allow for future software enhancements. In addition to reducing weight and improving reliability, displays with vFusion functionality empower operators to organize and visualize the key information they need.
