Avionics & Display Solutions
Avionics systems and display solutions from Intellisense Systems serve in a variety of applications, from primary flight displays to form-fit-function replacements. They are designed to be both compatible with legacy technology and open source to work with future software. They are modular and ruggedized to ensure that they operate in any environment, in day/night conditions, and under every g-force.
To guarantee the clarity of the information presented to users, avionics systems and visualization solutions from Intellisense support common resolutions from VGA to 4K. Our avionics displays are also sunlight readable with a backlight luminance rated at greater than 300 feet-lamberts.
Avionics Displays
Our displays and visualization products are designed for support in any aviation environment. They are expandable and upgradable to resistive multi-touch screen functionality with FACE™-conformant software, including ARINC-661. Electronics designed to support future growth, like higher resolution inputs and touch-screen integration.
Displays that integrate today and support seamless future upgrades
- Form-Fit-Function Replacements
- Open Systems Modular Architecture
- FACE™-Conformant Software, Including ARINC-661
- Multifunction Bezel Options
- Resistive Multi-Touch Screen (RMTS) Options Available
- Support for Common Avionics Interfaces:
- Fiber optic ARINC-818
- DVI-D
- RS-422
- Support for Resolutions from VGA to 4K and More

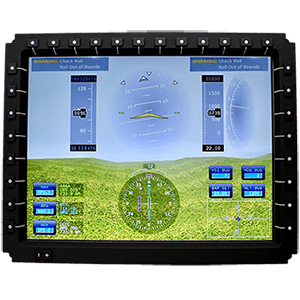

Video Display Terminal 12 x 9 (VDT-1209)
12 in. x 9 in. (15 in. diagonal) with 1600 x 1200 resolution
Video Display Terminal 6 x 8 (VDT-0608)
6 in. x 8 in. (10.4 in. diagonal) with 1024 x 768 resolution

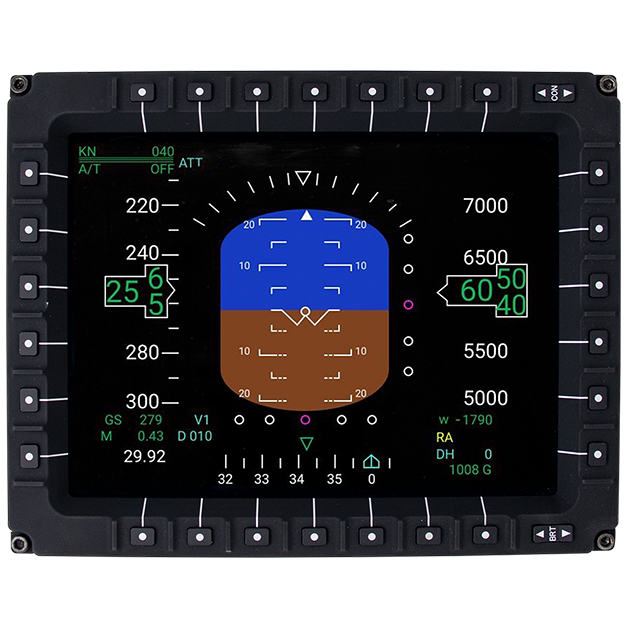

Smart Video Display Terminal 6 x 8 (SVDT-0608)
The smart avionics display with advanced processing, graphics, and touchscreen capabilities

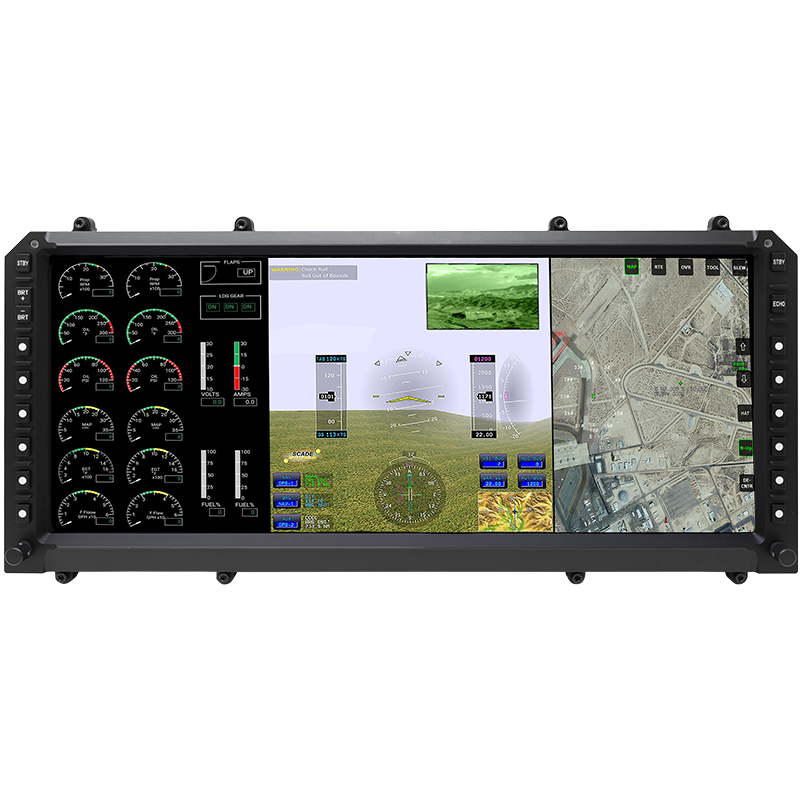

Large Area Display 20 x 8 (LAD-2008)
20 in. x 8 in. (21.5 in. diagonal) with 2560 x 1024 resolution

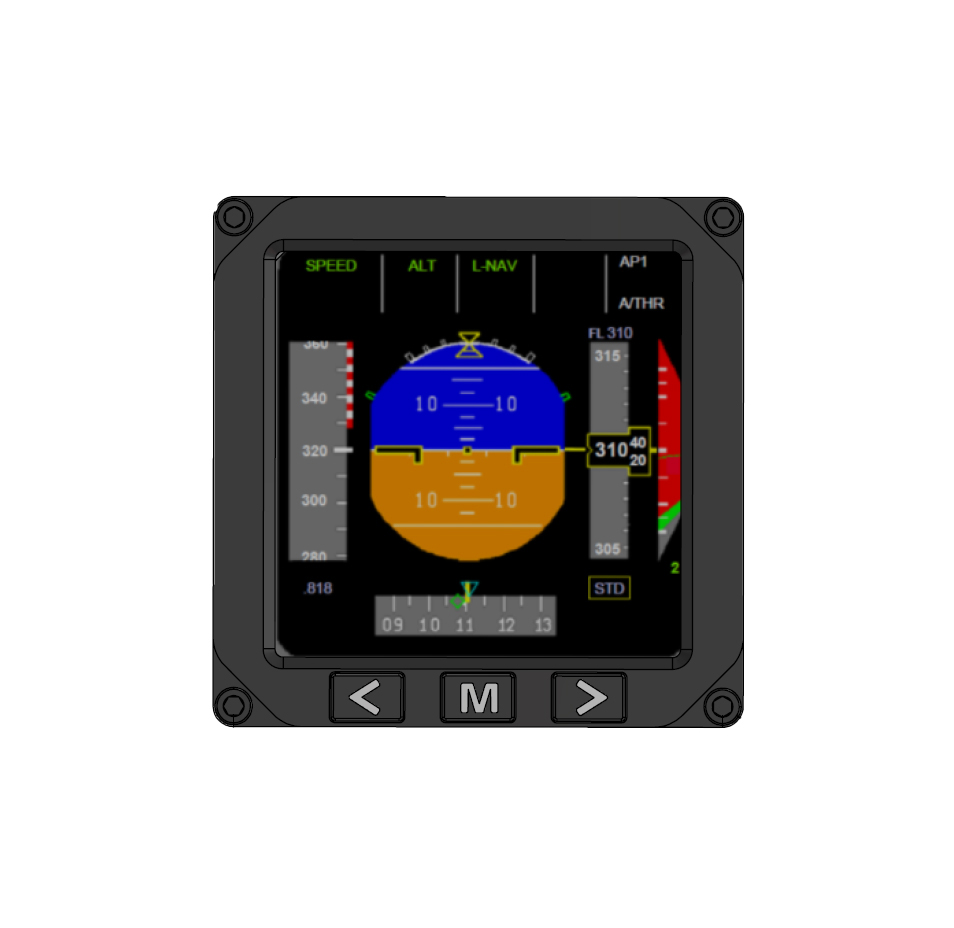

3ATI Standby Engine Display (3ATI SED)
High-resolution active-matrix liquid crystal display and customizable bezel
vFusion™ – Combine 2-4 Video Inputs on 1 Display
vFusion™ technology empowers pilots to combine 2-4 screens onto a single avionics display. Available on all rugged displays from Intellisense Systems, this digital video processing card can ingest up to 4 ARINC-818 inputs (SXGA format) or 1 DVI input so that indicators, radar, and live video can all be shown on one screen.
vFusion capabilities include:
- Input Mixing
- Picture-In-Picture with Zoom
- Tiling
- Overlays with Alpha Blending
This technology works with legacy XGA resolution displays while also being open source to allow for future software enhancements. In addition to reducing weight and improving reliability, displays with vFusion functionality empowers pilots to organize and visualize the key information they need.
